The Architect's Drawing Board

Technical Bulletin

Design Idea

During the course of installing ADA signs, many times we find that not enough room has designed for the correct placement of the signage. We have found one architect, that has come up with a design that allows proper placement of the signage while also utilizing the surrounding area to its fullest.

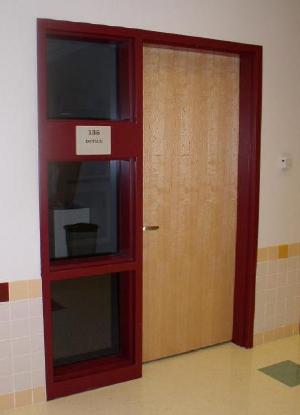

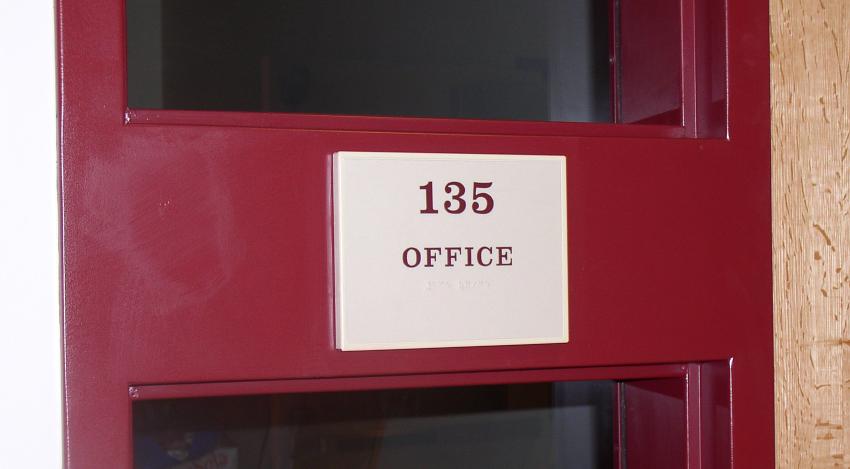

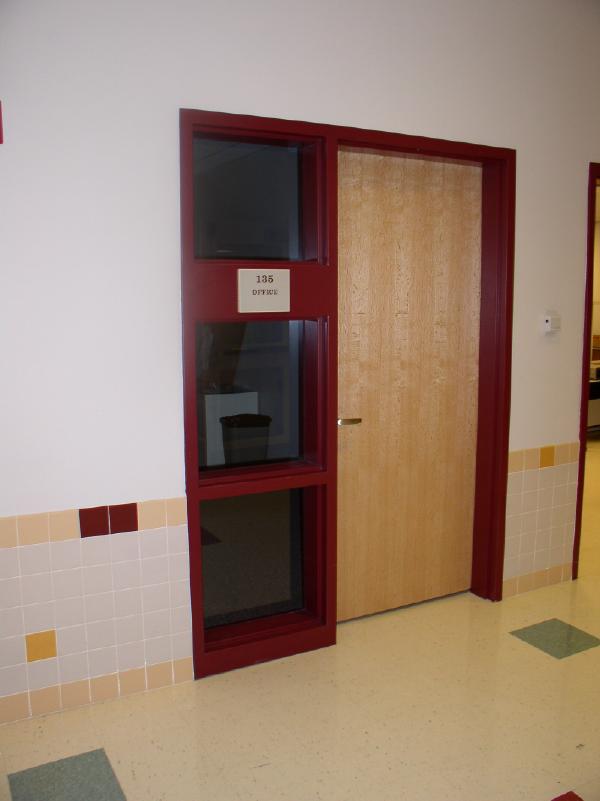

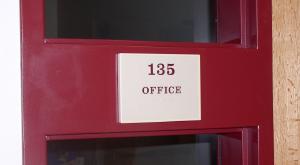

The architect designed a sidelight that has a horizontal metal band at the 60" mark above the floor that will accommodate a 6" high sign comfortably. Whereas the space below the sign is usually wasted due to ADA protrusion requirements, the sidelights give great functionality by allowing light to enter the room.

click for a larger image

click for a larger image
